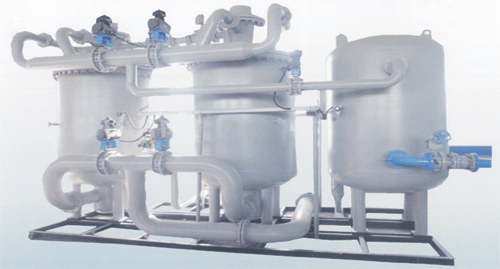

常壓解吸變壓吸附制氧設備(Vacuum Desorption PSA Oxygen Plant)

    流程簡介:

    原料空氣經壓縮機增壓,壓縮空氣進緩沖罐后進入吸附器,空氣中的N2、H2O、CO2及碳氫化合物被吸附劑吸附,同時獲得氧氣,吸附塔吸附飽和后,自動切換,該吸附器減壓至大氣壓再生。本設備有兩個吸附塔交替使用,連續獲得氧產品。

    PROCESS DESCRIPTION
    Feed air is compressed by the air compressor. The compressed air is led to the buffer tank and then to the adsorber, nitrogen, moisture, carbon dioxide and hydrocarbon in the air are adsorbed by adsorbent, product oxygen is obtained at the same time. Once the adsorbent in the adsorber is saturated, the system will change over automatically, and this adsorber will be depressurized to atmospheric pressure for regeneration. There are two adsorbers working alternatively to generate product oxygen continuously.

    PSA制氧設備流程示意圖:PROCESS FLOW SHEET FOR PSA OXYGEN PLANT


    型號規格

    型號
    Model

    氧氣純度
    O2 Purity

    氧氣輸出壓力
    O2 Output Pressure
    氧氣產量
    Nm3/h
    O2 Output
    裝機功率
    Kw
    Power
    占地面積
    m×m
    Area Taken
    PSAO-5 90%至95% 0.2MPa 5 7.5 4×2
    PSAO-10 10 15 4×3
    PSAO-15 15 30 4×5
    PSAO-20 20 37 4×7
    PSAO-30 30 45 4×8
    PSAO-40 40 55 4×10
    PSAO-50 50 65 5×10
    PSAO-70 70 95 6×10
    PSAO-80 80 120 7×10
    PSAO-100 100 132 8×12
    PSAO-150 150 200 12×12


    通用條件:
    電力:低壓電源:3相
    冷卻水:溫度≤32℃
    安裝場地:室內非防爆地區,環境溫度5~35℃


    Utilities:
    Power: LT power supply: 3-phase
    Cooling Water: Temperature ≤32℃
    Installation Area: Non Explosion-proof Area



    應用領域:APPLICATION FIELD

    黑色金屬冶煉
    Ferrous Metal Refinery
    富氧噴煤煉鐵、電爐煉鋼等
    Oxygen –rich PCI iron making & EAR steel making
    有色金屬冶煉
    Non-ferrous Metal Refinery
    煉銅、煉鋅、煉鉛、煉金、煉鎳等
    Copper, Zinc, Lead, Gold and Nickel refinery
    化工造氣
    Chemical Gas
    合成氨、甲醇、乙烯、乙二醇生產等
    Ammonia, methanol, ethylene and glycol production etc.
    富氧燃燒
    Oxygen Rich Combustion
    工業鍋爐、玻璃爐窯、電解鋁等
    Industrial boiler, glass kiln & Electrolytic Aluminum
    造紙業
    Paper Making
    造紙工業氧氣蒸解、漂白、黑液氧化
    Oxygen cooking, bleaching & oxidization of black liquor in paper making industry
    環保領域
    Environmental Protection
    氧氣曝氣活性污泥法處理工業廢水、垃圾焚燒
    Oxygen aeration activated sludge process for industrial waste water treatment & waste incineration
    玻璃加工
    Glass Making
    富氧助燃技術應用于玻璃熔窯
    Oxygen-rich combustion technology applied in glass kiln
    煤礦生產
    Coal Mine Production
    煤礦機械修理廠、加工制造、修理
    Repair Machining, Manufa cture & main tenance of Coal Mine Machinetry
