真空解吸變壓吸附制氧設備（Vacuum
        Desorption PSA Oxygen Plant）


    流程簡介：



        原料空氣經過濾去粉塵，進入鼓風機增壓，進入吸附器，空氣中的N2, H2O、CO2及碳氫化合物被吸附劑吸附，同時獲得氧氣，吸附塔吸附飽和后，自動切換，該吸附器減壓抽真空再生，本設備有三個吸附塔交替使用，連續獲得氧產品，氧產品經過氧壓機壓送至用戶，氧壓機壓力可根據用戶要求設置。







    PROCESS DESCRIPTION

      After removal of dust by the suction filter, the feed air is pressurized
      by the air blower and led to the adsorber. Nitrogen, moisture, carbon dioxide
      in the air are adsorbed by adsorbent, oxygen gas is obtained at the same
      time. When the adsorption is saturated, the system will change over automatically,
      then the adosrober will be depressurized and vacuumized for regeneration.
      There are three adsorbers working alternatively to obtain product oxygen
      continuously. The product oxygen is delivered to the User after being compressed
      by the oxygen compressor at the pressure specified by the User.

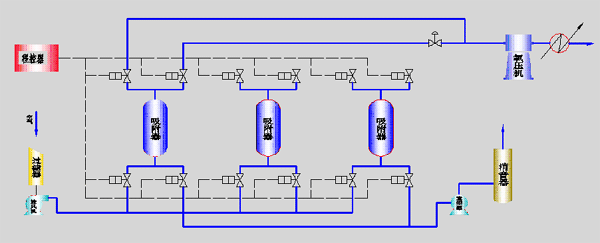

    VPSA制氧設備流程示意圖：PROCESS
        FLOW SHEET OF VPSA OXYGEN PLANT











    型號規格










    型號

              Model





    氧氣純度

              O2 Purity



          氧氣輸出壓力

            O2 Output Pressure

          氧氣產量

            Nm3/h

            O2 Output

          裝機功率

            Kw

            Power

          冷卻水（循環）

            Nm3/h

            Cooling Water (Recycling)




          VSAO-200
          90%至95%
          0.005MPa
          200
          120
          1.2




          VSAO-300
          300
          160
          1.5




          VSAO-350
          350
          185
          2.0




          VSAO-400
          400
          235
          2.4




          VSAO-500
          500
          265
          2.58




          VSAO-600
          600
          320
          2.6




          VSAO-700
          700
          360
          2.7




          VSAO-800
          800
          445
          3.3




          VSAO-900
          900
          487
          5.0




          VSAO-1000
          1000
          575
          6.0




          VSAO-1200
          1200
          635
          6.0




          VSAO-1300
          1300
          720
          7.2




          VSAO-1500
          1500
          790
          7.2




          VSAO-1600
          1600
          990
          8.2




          VSAO-2000
          2000
          1215
          8.2







        通用條件：

        電力：高壓電源、低壓電源：3相

        冷卻水：溫度≤32℃




        Utilities:

        Power: HT & LT power supply: 3-phase

        Cooling Water: Temperature ≤32℃


    安裝場地：非防爆地區

        Installation Area: Non Explosion-proof Area

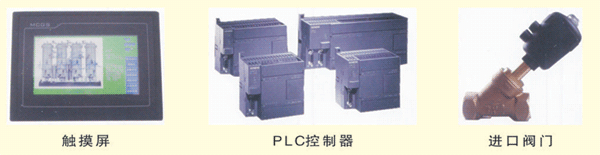

    設備主要配件
